Alien Hydroponics RDWC 20 Pot 4 Row Kit
Talk with an Expert
Need expert advice? Speak with one of our specialists today to find the perfect solution for your security needs. 1-833-673-6879
The ALIEN RDWC 20 Pot 4 Row Kit is built for growers who demand efficiency and accessibility. Available in two pot sizes and two header configurations, with or without an air pump (required for operation), this system optimizes oxygenation and nutrient circulation for superior plant growth. Featuring an innovative layout, it allows you to create an aisle in the middle of the rows for complete plant access, making maintenance effortless. Easy to assemble and packed with advanced setup options, this RDWC kit lets you cultivate 20 plants to perfection using state-of-the-art recirculating deep water culture technology!
Key Features
- Customizable Setup – Available in 5-gallon (20L) or 9.5-gallon (36L) pots with multiple header configurations.
- Optimized for Growth – 2" (50mm) circulation pipe enhances nutrient distribution and prevents clogging.
- A.I.R. Air Injection Rings – Provides superior oxygenation compared to traditional air stones for healthier roots.
- No-Glue Assembly – Quick and easy setup with provided custom installation diagrams.
- Flexible Header Positioning – Place the header inside or outside your grow area to maximize space.
- Automatic Water Top-Off – Integrated float valve connects to a reservoir for consistent water levels.
- Advanced Filtration – Keeps the system clean and running efficiently.
- Temperature Regulation – Silver heat-reflective polymer pots and circulation pipes help keep roots cool.
Package Includes
- 20 x ALIEN RDWC Pots (choose between 5-gallon or 9.5-gallon size)
- 1 x Recirculating Header Unit
- 1 x Set of A.I.R. Air Injection Rings
- 1 x Integrated Filtration System
- 1 x Float Valve for Automatic Top-Off
- 2" / 50mm Circulation Pipe & Fittings
- 1 x Custom Setup Diagram
Specifications

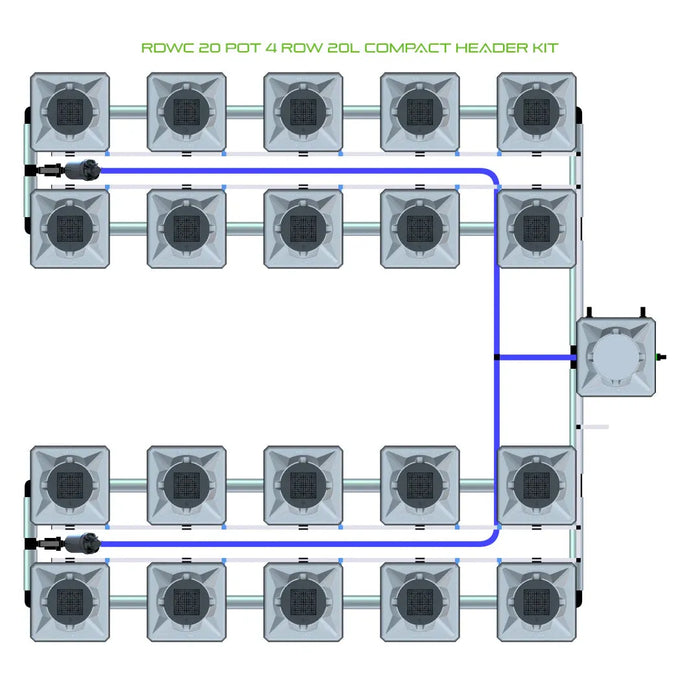

RDWC 20 Pot 4 Row 20L Compact
Header Kit Technical Information
| Specification | Details |
|---|---|
| Number of Pots | 20 |
| Number of Rows | 4 |
| Kit total fluid volume | 88.8 gallons / 336 liters |
| Minimum Assembled Size |
84⅝" (L) x 66½" (W) |
| Maximum Assembled Size |
122½" (L) x 123⅝" (W) |
|
Water Pumps Included |
RDWC Circulation Water Pump 30: 500 GPH, 45 Watts |
| Air Pump is Included |
52.8 gallons 200 liters of air per minute (3170.1 gallons / 12000 liters per hour) |
| SKU | BD100-1420C |

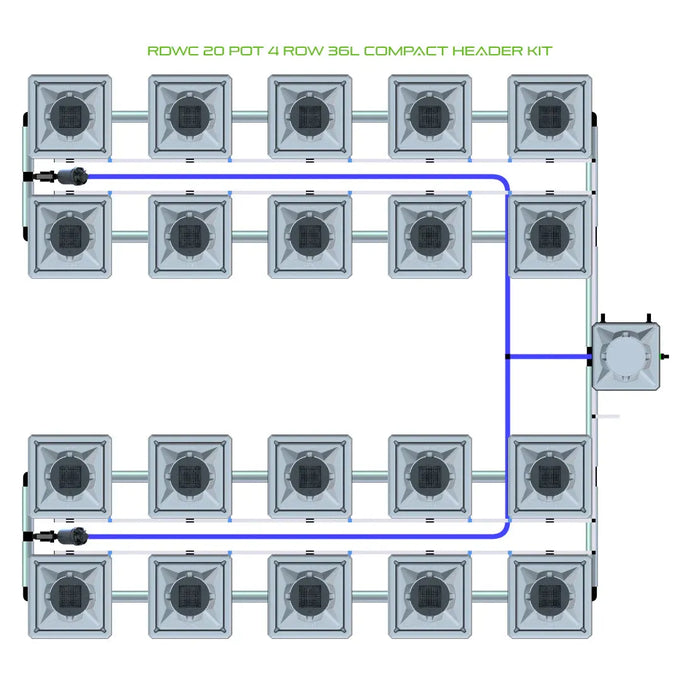

RDWC 20 Pot 4 Row 36L Compact
Header Kit Technical Information
| Specification | Details |
|---|---|
| Number of Pots | 20 |
| Number of Rows | 4 |
| Kit total fluid volume | 156.4 gallons / 592 liters |
| Minimum Assembled Size |
102" (L) x 79⅛" (W) |
| Maximum Assembled Size |
149¼" (L) x 144½" (W) |
|
Water Pumps Included |
RDWC Circulation Water Pump 30: 500 GPH, 45 Watts |
| Air Pump is Included |
52.8 gallons 200 liters of air per minute (3170.1 gallons / 12000 liters per hour) |
| SKU | BD100-2420C |

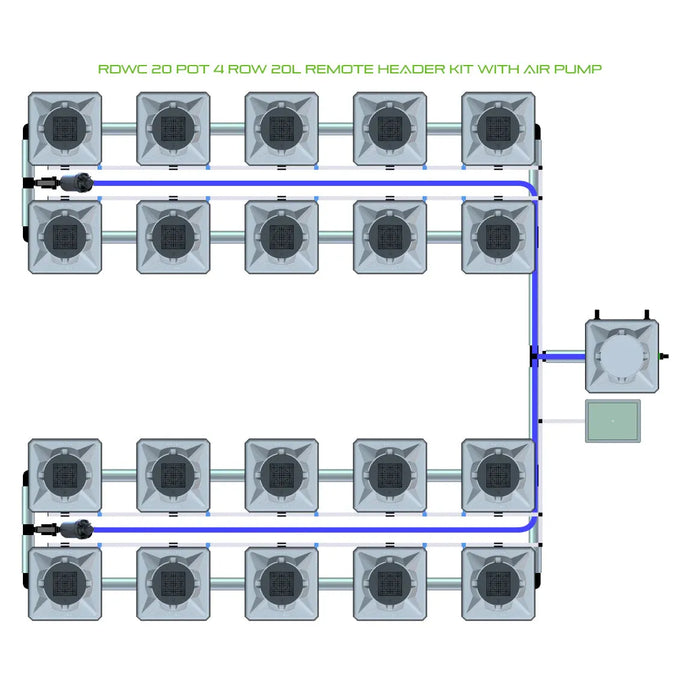

RDWC 20 Pot 4 Row 20L Remote Header
Kit with Air Pump Technical Information
| Specification | Details |
|---|---|
| Number of Pots | 20 |
| Number of Rows | 4 |
| Kit total fluid volume | 88.8 gallons / 336 liters |
| Minimum Assembled Size |
88⅝" (L) x 66½" (W) |
| Maximum Assembled Size |
161¾" (L) x 123⅝" (W) |
|
Water Pumps Included |
RDWC Circulation Water Pump 30: 500 GPH, 45 Watts |
| Air Pump is Included |
20: 52.8 gallons 200 liters of air per minute 195 Watts |
| SKU | BD100-1420RA |

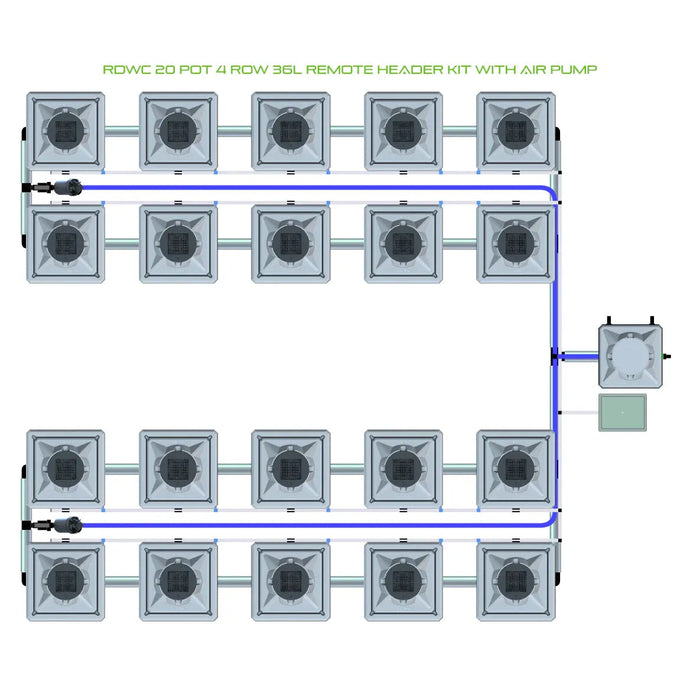

RDWC 20 Pot 4 Row 36L Remote Header
Kit with Air Pump Technical Information
| Specification | Details |
|---|---|
| Number of Pots | 20 |
| Number of Rows | 4 |
| Kit total fluid volume | 156.4 gallons / 592 liters |
| Minimum Assembled Size |
105⅞" (L) x 79⅛" (W) |
| Maximum Assembled Size |
188⅝" (L) x 144½" (W) |
|
Water Pumps Included |
RDWC Circulation Water Pump 30: 500 GPH, 45 Watts |
| Air Pump is Included |
20: 52.87 gallons 200 liters of air per minute 195 Watts |
| SKU | BD100-2420RA |
