Chuck Rack 4-Bike Vertical Rack W/ Full Tilt BASE Post

SKU
Original price $989.00 - Original price $1,089.00
Original price $989.00
$849.00
$849.00 - $949.00
Current price $849.00
Choose a Size

Talk with an Expert

Need expert advice? Speak with one of our specialists today to find the perfect solution for your security needs. 1-833-673-6879

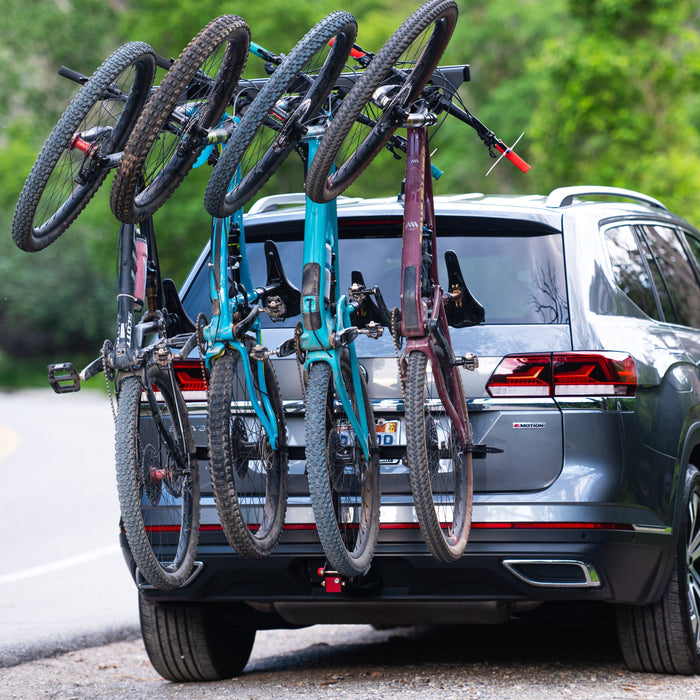

The Chuck Rack 4-Bike Vertical Rack with Full Tilt BASE Post is a lightweight, modular bike transport system designed for secure and convenient hauling. It carries up to four bikes in a vertical, handlebar-mounted configuration that protects frames and avoids wheel-to-wheel contact. With a full tilt system, you can access your vehicle’s rear even when fully loaded, making it ideal for road trips, races, and family adventures.

Key Features

  • Carries up to 4 bikes in secure vertical configuration
  • Handlebar-mounted design protects frames and prevents spoke damage
  • Lightweight aluminum construction for easy handling and loading
  • Full tilt system allows rear vehicle access without removing bikes
  • Strong anti-wobble hitch system for stable transport
  • Folds flat for compact storage when not in use
  • Modular design compatible with other Chuck Rack systems
  • Suitable for MTB, gravel, kids’, fat bikes, and most e-bikes (within limits)
  • Powder-coated finish for weather resistance and durability
  • Expandable up to 6-bike capacity with optional extenders

Package Includes

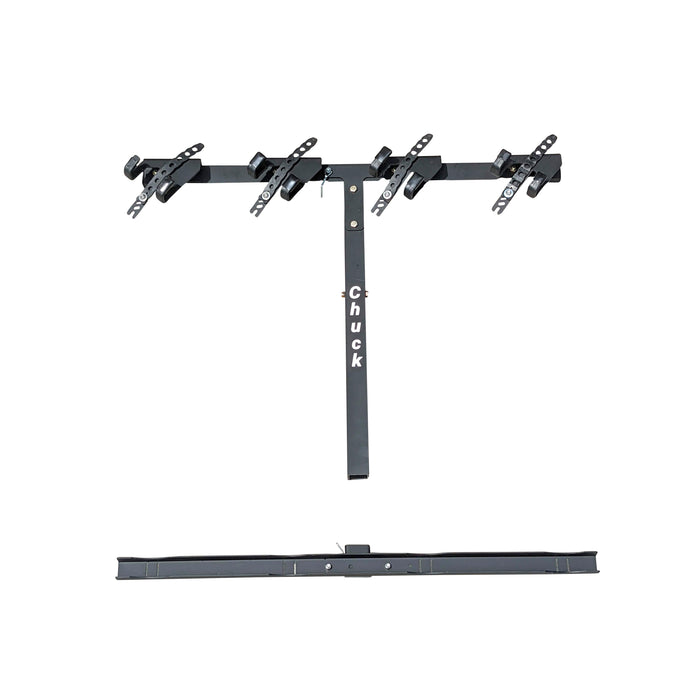

  • Chuck Rack (4-bike configuration)

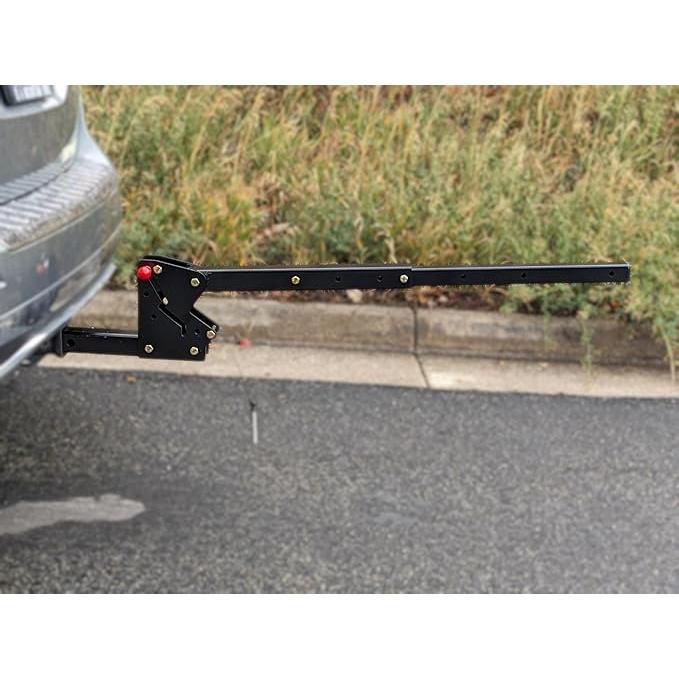

  • Full Tilt Base Post (2" hitch compatible)
  • Mounting pin + safety clip
  • Anti-wobble system with installation tool
  • Rubber protection guards
  • Setup instructions and assembly tools

Specifications

Specification Details
Product Type Hitch-Mounted Vertical Bike Rack
Capacity 4 bikes (expandable to 6 with
extenders)
Material Powder-coated aluminumrack + steel
base post
Weight ~35 lbs (rack), ~20 lbs (base post)
Maximum Load ~200 lbs (varies by bike distribution)

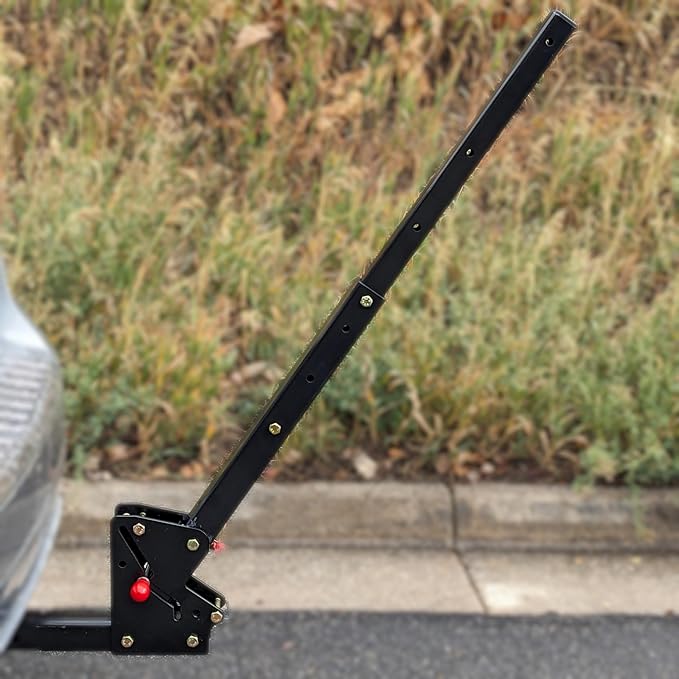

Tilt System 2-stage tilt (up to 90°)
Hitch Compatibility Standard 2" receiver (1.25" adapter
available separately)
Storage Folds flat for compact storage
Use Multi-bike transport system for
outdoor and travel use
