Hayward Turnstile SG525 SwingGate ADA
SKU SG525
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
-
$0.00
Current price
$0.00
Availability:
in stock, ready to be shipped
Talk with an Expert
Need expert advice? Speak with one of our specialists today to find the perfect solution for your security needs. 1-833-673-6879

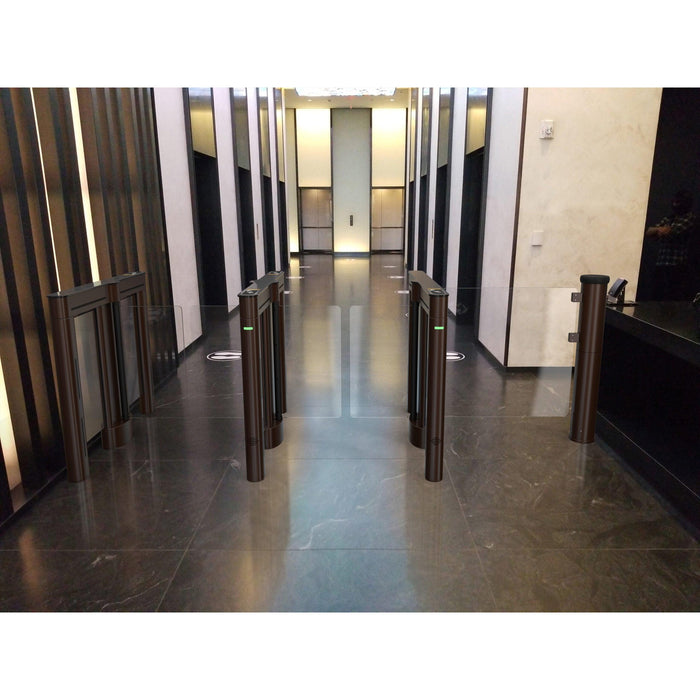

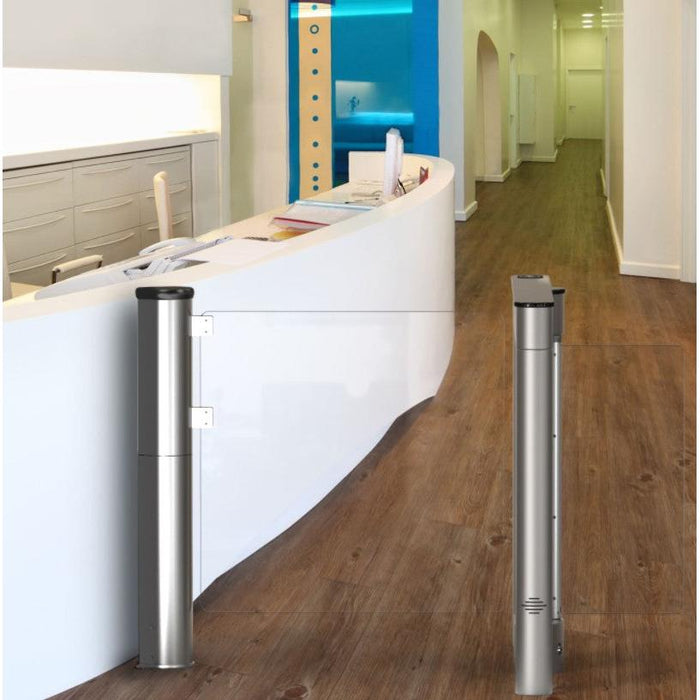

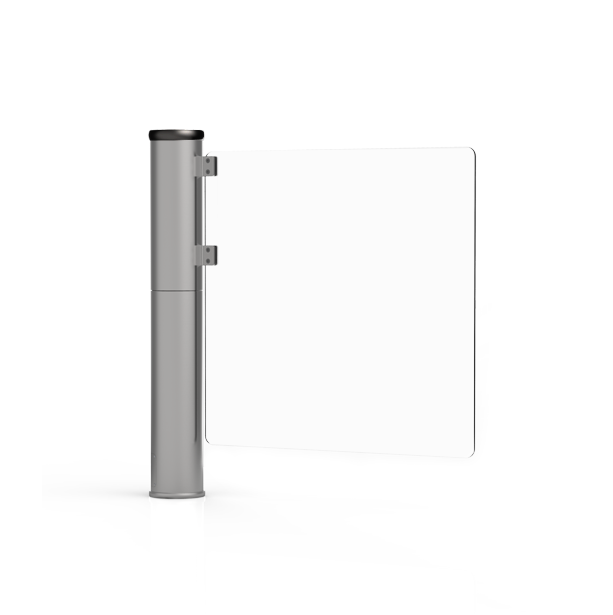

The Hayward Turnstile SG525 SwingGate ADA is a premium motorized pedestrian gate designed for modern, touchless, and ADA-compliant access control. Featuring a powerful brushless motor, frameless acrylic barrier, and sleek stainless steel post design, the SG525 delivers smooth, quiet, and precise operation. With intelligent impact detection, audible misuse alarms, and flexible access control integration, it is an ideal solution for corporate offices, commercial buildings, and upscale interior entrances.
Key Features
- Premium motorized ADA swing gate with fully touchless operation
- Modern design complements sophisticated architectural interiors
- Powerful brushless motor provides smooth and quiet movement
- One-way 90-degree or two-way swing operation options
- Intelligent drive system detects impacts and stops motion for safety
- Built-in audible alarms alert staff during forced entry attempts
- ADA-compliant design supports accessible pedestrian entry
- Frameless acrylic barrier with abrasion-resistant coating for durability
- Optional glass barrier available for premium applications
- Integrates with most access control systems via momentary dry contact
- Dedicated fire system input simplifies integration
- Available with custom barrier widths, heights, finishes, and etching

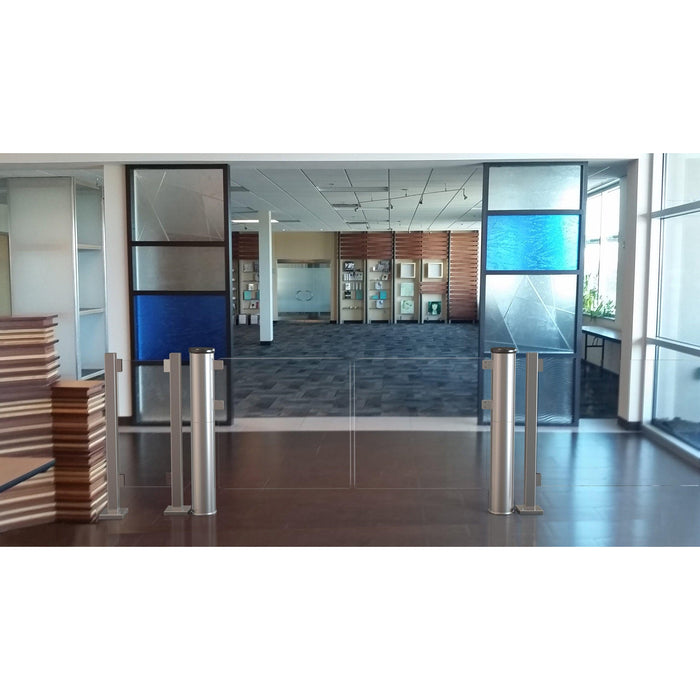

- Two units can be installed together for saloon-style operation
- Optional infill barriers provide additional security and privacy
Package Includes
- 1 x Hayward SG525 SwingGate ADA Motorized Gate
- 1 x Stainless Steel Post Assembly
- 1 x Frameless Acrylic Barrier Panel
- 1 x Motorized Drive System
- Installation Hardware Package
Specifications
| Specification | Details |
|---|---|
| Product Type | Motorized ADA Swing Gate |
| Model | SG525 SwingGate |
| Price Range | Premium Value |
| Post Material | #304 Stainless Steel (Alternate Finishes Available) |
| Barrier Material | 0.5" Thick Frameless Acrylic with Abrasion Resistant Coating |
| Optional Barrier Material | Glass |
| Barrier Height | 39" Standard, 46" Optional High Barrier |
| Standard Barrier Width | 34" (36" Clear Passage with Recommended 2" Gap) |
| Saloon Barrier Width | 72" |
| Custom Barrier Widths | Available |
| ADA Compliant | Yes |
| Swing Direction | One-Way or Two-Way |
| Closing Type | Motorized |
| Mount Type | Floor Posts |
| Exterior/Interior Use | Interior |
| Signage | Custom Barrier Etching Available |
| Infill Barriers | Optional |
| Electric Entry/Exit | Optional |
