Leitner Designs Active Cargo System - Forged No Drill - Chevrolet

Leitner Designs Active Cargo System - Forged No Drill - Chevrolet

SKU
by Leitner Designs
$1,650.00 - $1,850.00
$1,650.00
$1,650.00 - $1,850.00
$1,650.00
Choose a Model | Year | Bed | Part

Talk with an Expert

Need expert advice? Speak with one of our specialists today to find the perfect solution for your security needs. 1-833-673-6879

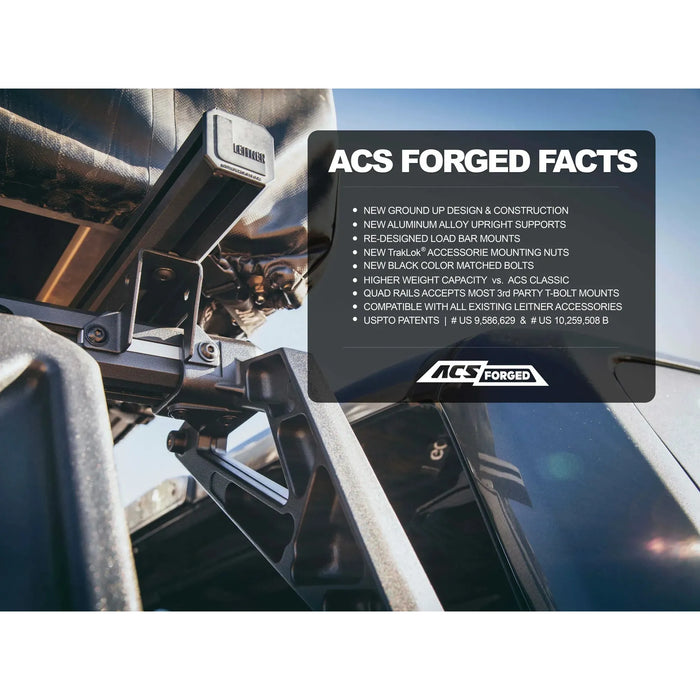

The Leitner Designs Active Cargo System (ACS) FORGED No Drill – Chevrolet is a heavy-duty, 100% bolt-on bed rack designed for drivers who want maximum strength with a clean, no-drill installation. This NDNS (No Drill / No Slide) configuration does not use rear support arms or sliding rear load bars, making it ideal for permanently mounted rooftop tents and fixed gear carriers. Developed through over five years and hundreds of thousands of off-road miles, the ACS FORGED delivers unmatched durability, modularity, and a refined forged aluminum design, all engineered and manufactured in Corona, California.

Key Features

  • No Drill Installation: 100% bolt-on design using factory mounting points
  • NDNS Configuration: No rear support arms and no sliding rear load bar

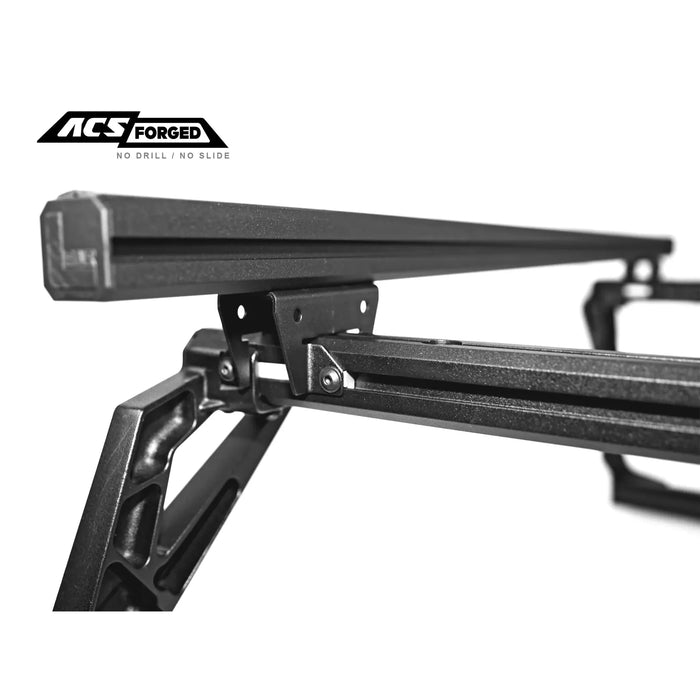

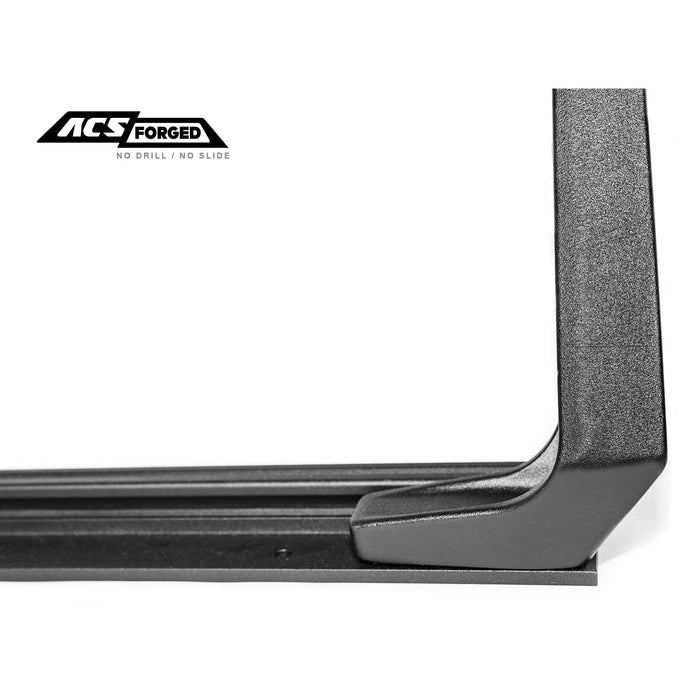

  • Forged Aluminum Uprights: Single-piece aluminum alloy uprights for extreme strength
  • Heavy-Duty Load Bars: 2.0” square aluminum load bars for serious cargo support
  • Quad-Rail Design: Endless mounting options for accessories and gear
  • Optional GearPOD Compatibility: Supports integrated locking GearPOD storage (sold separately)
  • Custom Black Fasteners: Grade 10.9 Zi-Ni coated fasteners with pre-applied Loctite
  • Low-Noise Design: Rubber wind diffuser and load pads reduce wind noise and cargo movement
  • Made in the USA: Designed, engineered, and manufactured in California

Package Includes

  • ACS FORGED No Drill rack system
  • Forged aluminum uprights
  • Heavy-duty load bars

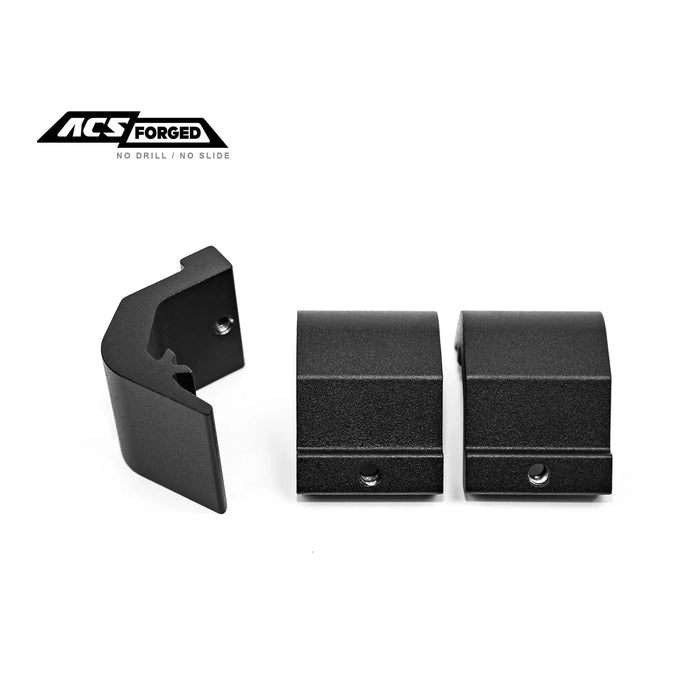

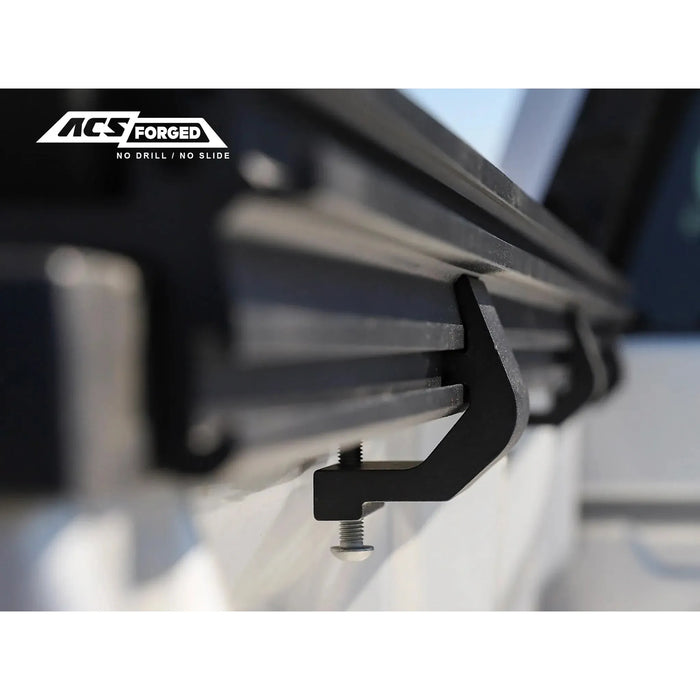

  • Vehicle-specific mounting brackets
  • Grade 10.9 black Zi-Ni coated hardware
  • Installation instructions

Vehicle Compatibility

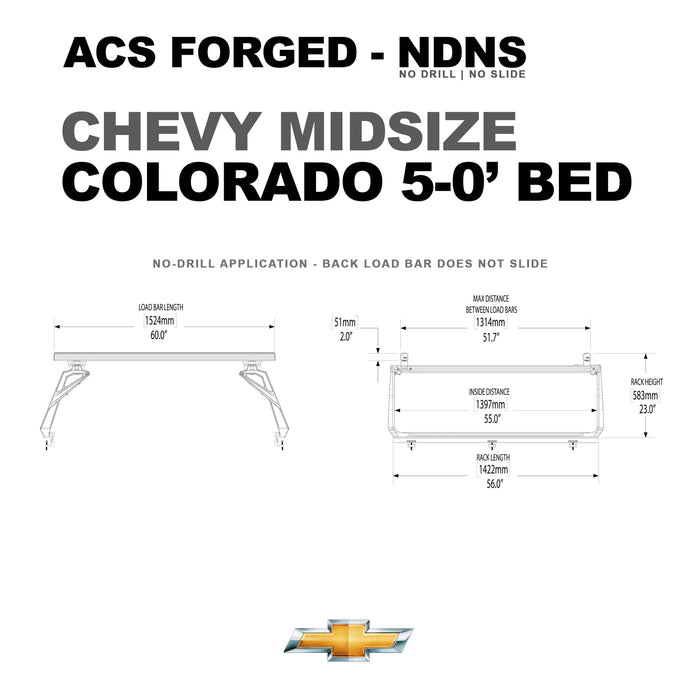

  • Chevy / GMC Midsize – 5 ft Bed
    • 2014–2023 GMC Canyon Short Bed
  • Chevy / GMC Midsize – 6 ft Bed

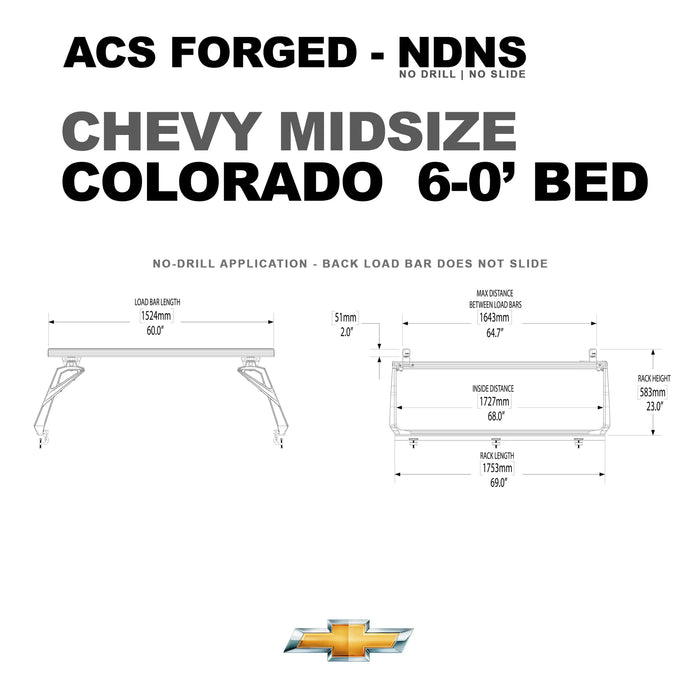

    • 2014–2023 Chevrolet Colorado Long Bed
    • 2014–2023 GMC Canyon Long Bed
  • Chevy / GMC Full Size – 5.8 ft Bed

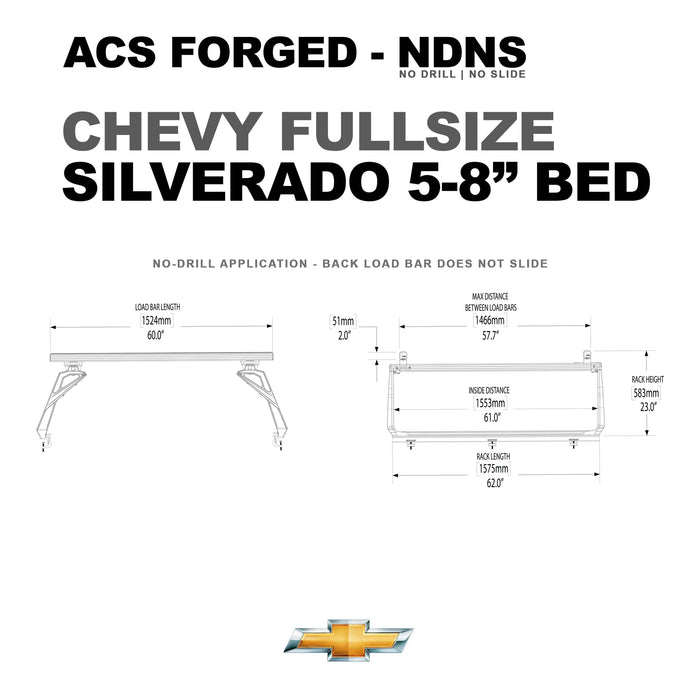

    • 2001–2023 Chevrolet Silverado 1500 Short Bed
    • 2001–2023 GMC Sierra 1500 Short Bed
  • Chevy / GMC Full Size – 6.6 ft Bed

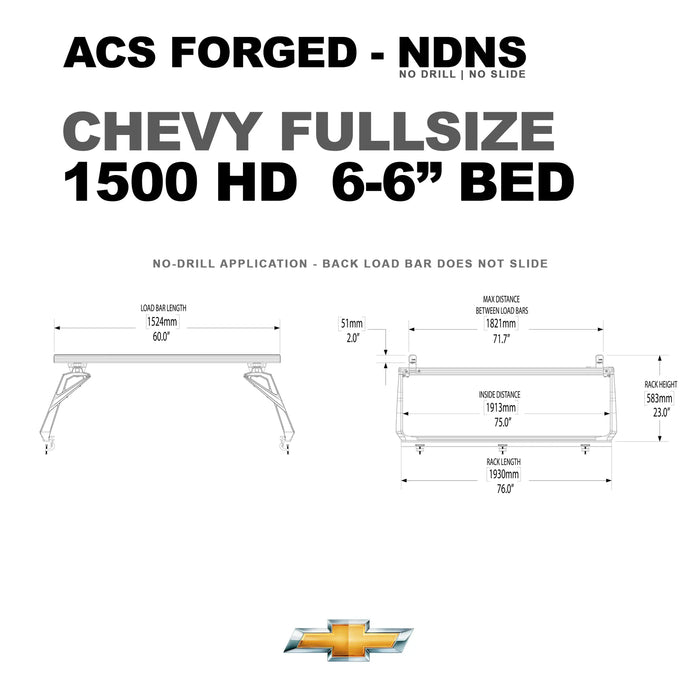

    • 2007–2023 Chevrolet Silverado 1500 / 2500HD / 3500HD Standard Bed
    • 2007–2023 GMC Sierra 1500 / 2500HD / 3500HD Standard Bed

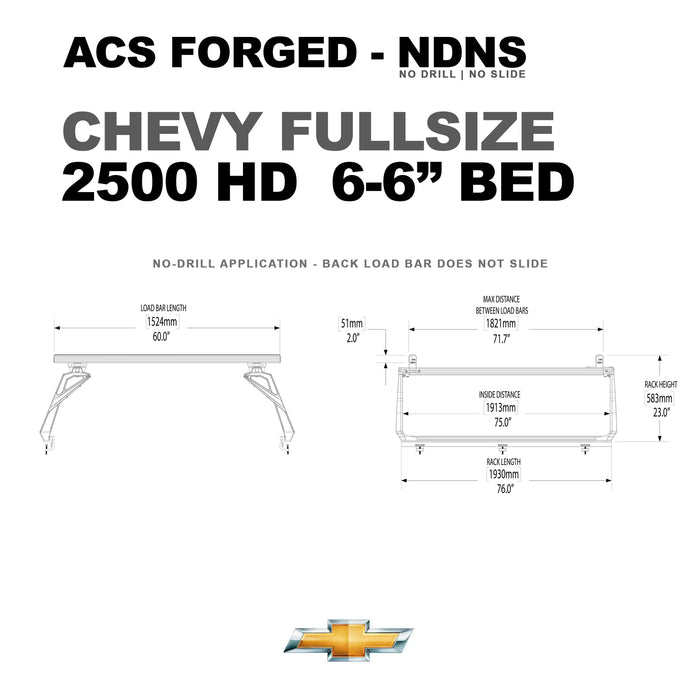

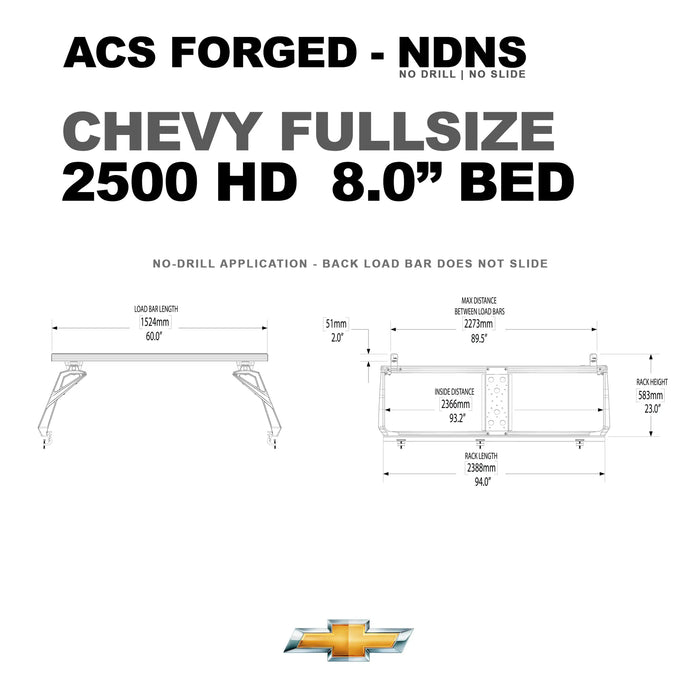

Specifications

Specification Details
Rack Type No Drill / No Slide (NDNS)
Weight 85 lbs
Height 23 inches (measured from top of bed caps)
Material Aluminum alloy construction
Load Bars 2.0” square aluminum
Fasteners Grade 10.9 black Zi-Ni coated
Finish Dual-stage powder-coated steel brackets
Accessory Compatibility Fits many Thule, Rhino-Rack, and Yakima accessories
DECKED System Compatible Yes

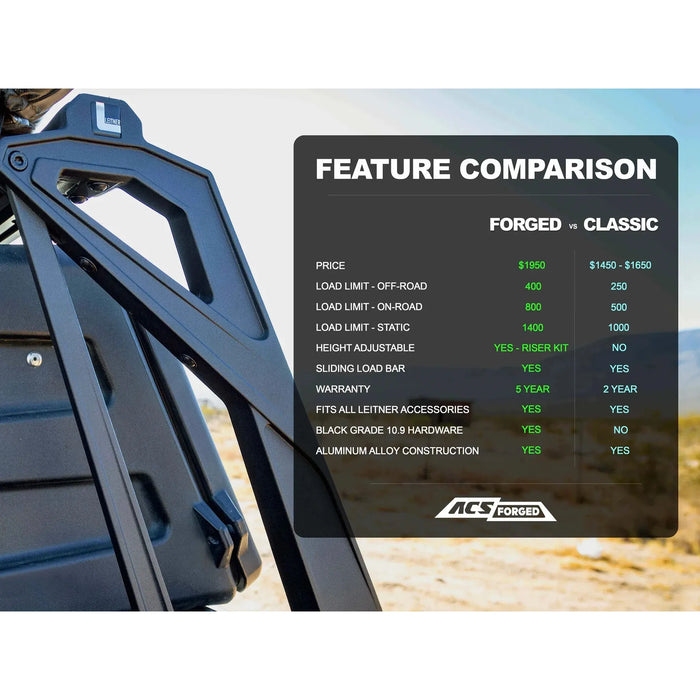

Off-Road Dynamic Load Capacity 400 lbs
On-Road Dynamic Load Capacity 800 lbs
Static Load Capacity (Parked) 1,400 lbs
Manufacturing Designed, engineered, and manufactured in the USA
Patent U.S. Patent 9,586,629
