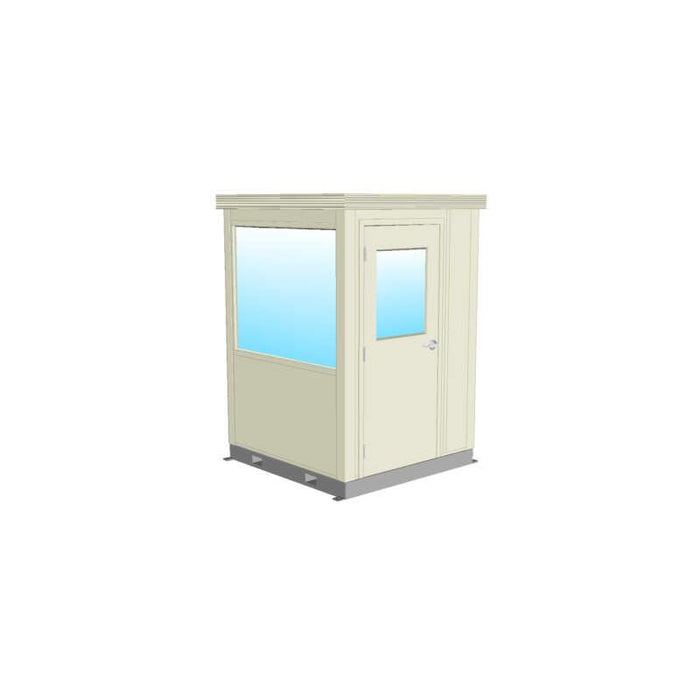

National Partitions Guard Shack 5x5
Talk with an Expert
Need expert advice? Speak with one of our specialists today to find the perfect solution for your security needs. 1-833-673-6879
The National Partitions Guard Shack 5x5 is a fully assembled exterior security booth designed for gatehouses, parking facilities, industrial sites, and access control applications. Built with insulated 3-inch galvanized steel wall panels, a one-piece leak-proof FRP roof, and a forkliftable welded steel base, this guard shack delivers superior durability, thermal efficiency, and all-weather protection. Its customizable layout allows you to configure doors, windows, HVAC, electrical, and other options to meet your exact security and operational needs.
Key Features
- Fully assembled 5' x 5' exterior guard shack for fast installation
- Heavy-duty insulated welded steel base with forklift access on all four sides
- Durable 3-inch insulated galvanized steel wall panels with R-13.5 insulation
- One-piece leak-proof 4-inch insulated FRP roof with R-18 insulation
- Rugged non-skid diamond plate steel floor with durable powder-coated finish
- Fully weather-sealed construction with silicone-caulked seams and joints
- Powder-coated wall, roof, and trim components for enhanced corrosion resistance
- Forkliftable design allows easy transportation and relocation
- Customizable layout for doors, windows, HVAC, electrical, and accessories
- Optional insulated fixed and sliding double-pane windows for improved visibility
- Optional heavy-duty powder-coated steel doors with weather chain and weather angle
- Approval drawings provided before production for customer approval
- Class A fire-rated construction tested to ASTM E84 standards
- Ideal for gatehouses, security checkpoints, parking lots, industrial facilities, and access control stations
Package Includes
- 1 x National Partitions Guard Shack 5x5 (Factory Assembled)
- Insulated 3-Inch Wall Panel System
- One-Piece Insulated FRP Roof Panel
- Forkliftable Insulated Welded Steel Base
- Diamond Plate Steel Floor
- Powder-Coated Exterior Trim
- Approval Drawings for Custom Configuration
- Factory Assembly
- Installation Hardware
Specifications
| Specification | Details |
|---|---|
| Product Type | Forkliftable Exterior Guard Shack |
| Condition | New |
| Building Type | Assembled Exterior Building |
| Interior Dimensions | 5 ft. D x 5 ft. W |
| Exterior Depth | 5.5 ft. (Nominal) |
| Exterior Width | 5.5 ft. (Nominal) |
| Exterior Height | 8.5 ft. (Nominal) |
| Interior Height | 90 in. (Nominal) |
| Color | White |
| Trim Color | White |
| Wall Thickness | 3 Inches |
| Roof Thickness | 4 Inches |
| Wall Insulation | R-13.5 |
| Roof Insulation | R-18 |
| Wall Material | 24-Gauge Galvanized Painted Steel with EPS Insulated Core |
| Roof Material | FRP Panels with EPS Insulated Core |
| Roof Design | One-Piece Leak-Proof Construction |
| Roof Overhang | 1 Inch Nominal |
| Floor System | Insulated Forkliftable Welded Steel Base |
| Floor Surface | Diamond Plate Steel |
| Forklift Access | All Four Sides |
| Fire Rating | Class A |
| Fire Test Standard | ASTM E84 |
| Doors | Optional |
| Windows | Optional |
| Lighting | Optional |
| Electrical Outlets | Optional |
| AC Outlet | Optional |
| Breaker Panel | Optional |
| Assembly Required | No (Ships Fully Assembled) |
