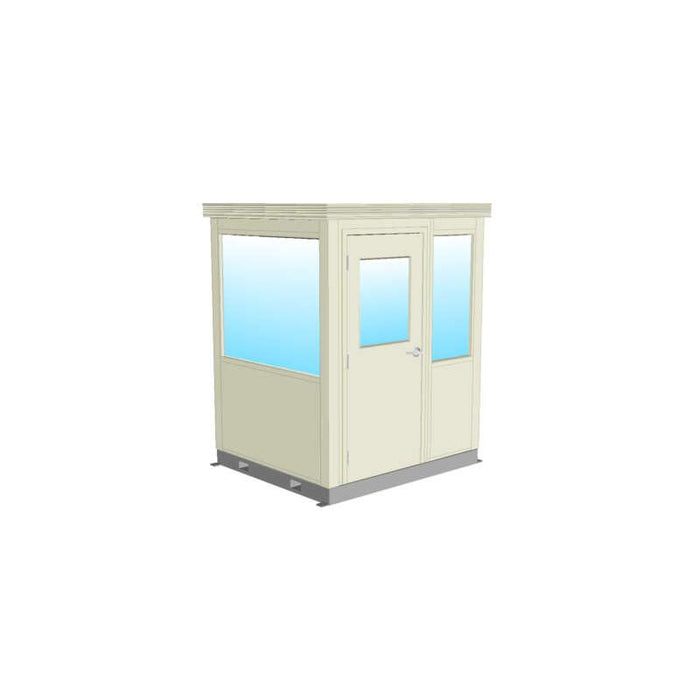

National Partitions Guard Shack 5x6
Talk with an Expert
Need expert advice? Speak with one of our specialists today to find the perfect solution for your security needs. 1-833-673-6879
The National Partitions Guard Shack 5x6 is a fully assembled exterior security booth designed for gatehouses, industrial facilities, parking lots, and access control points. Constructed with insulated 3-inch galvanized steel wall panels, a one-piece leak-proof FRP roof, and a forkliftable welded steel base, this guard shack provides outstanding durability, thermal efficiency, and weather protection. Its customizable layout allows you to configure doors, windows, HVAC, electrical, and accessories to meet your specific operational and security requirements.
Key Features
- Fully assembled 5' x 6' exterior guard shack for quick installation

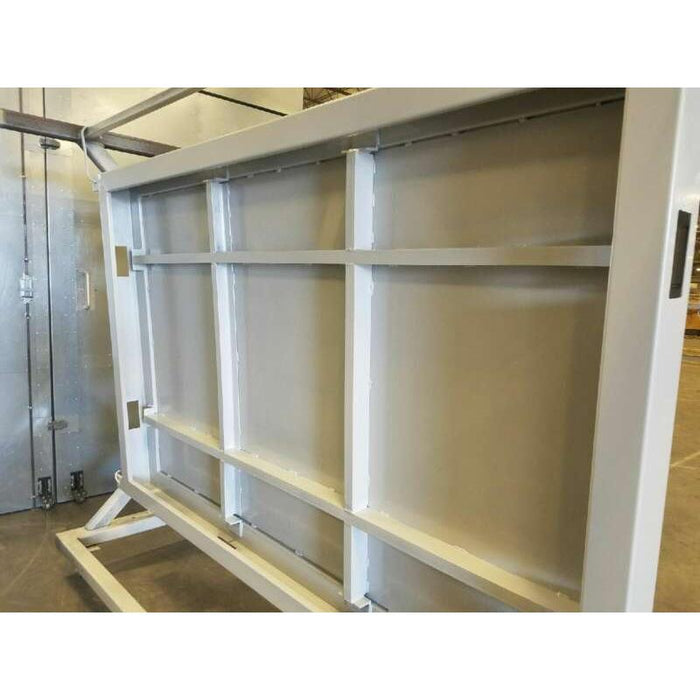

- Heavy-duty insulated welded steel base with forklift access on all four sides
- Durable 3-inch insulated galvanized steel wall panels with R-13.5 insulation
- One-piece leak-proof 4-inch insulated FRP roof with R-18 insulation

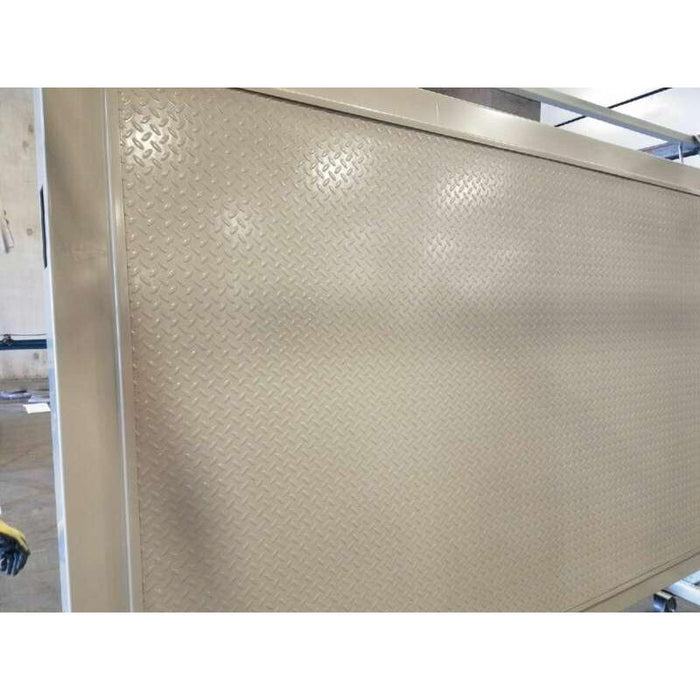

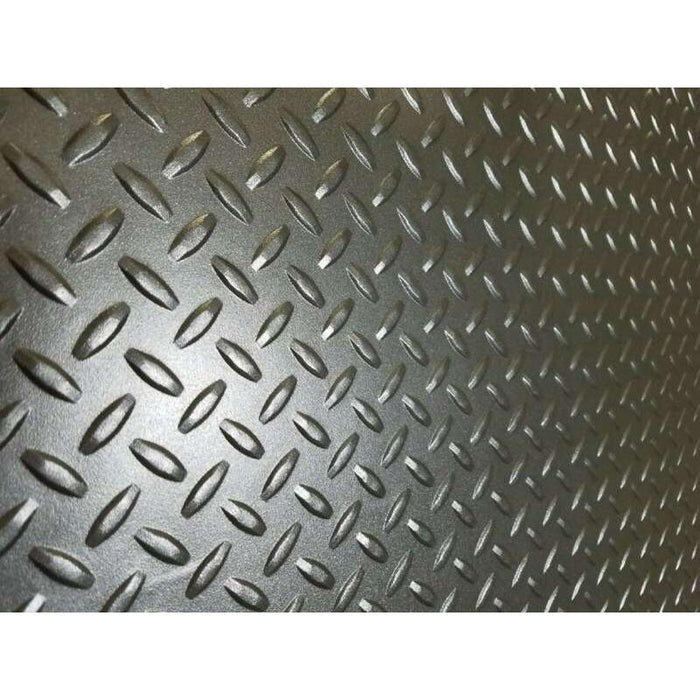

- Rugged non-skid diamond plate steel floor with powder-coated finish
- Fully weather-sealed construction with silicone-caulked seams and joints
- Powder-coated wall, roof, and trim components for enhanced corrosion resistance

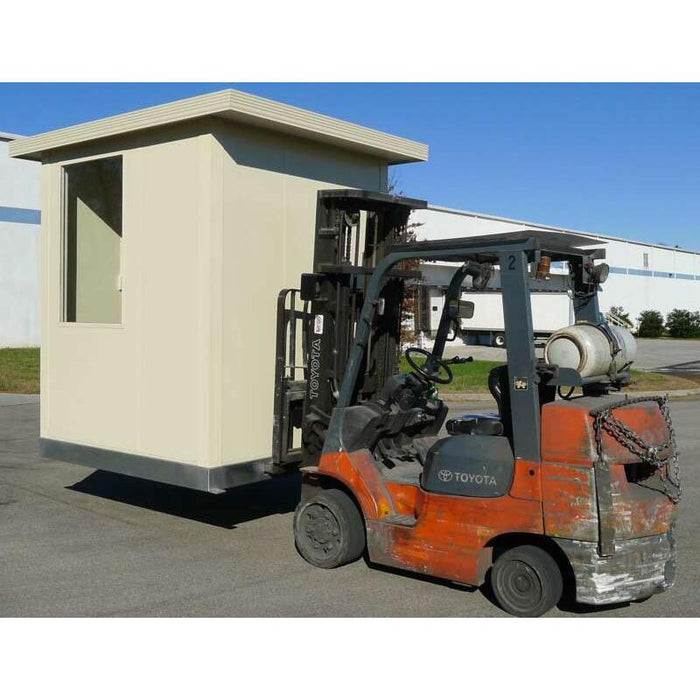

- Forkliftable design for easy transportation and relocation
- Customizable layout for doors, windows, HVAC, electrical, and accessories
- Optional insulated fixed and sliding double-pane windows for greater visibility
- Optional heavy-duty powder-coated steel doors with weather chain and weather angle
- Approval drawings provided before production for customer review
- Class A fire-rated construction tested to ASTM E84 standards

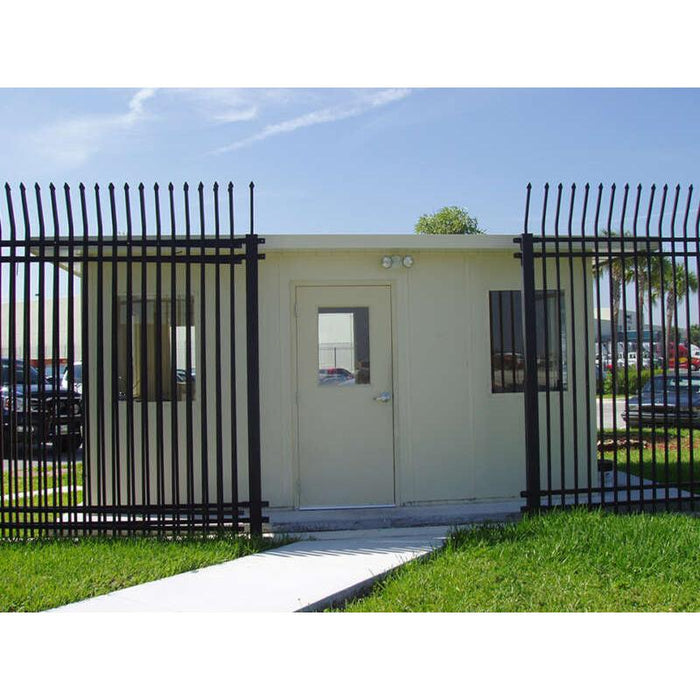

- Ideal for gatehouses, security checkpoints, industrial facilities, parking lots, and access control applications
Package Includes
- 1 x National Partitions Guard Shack 5x6 (Factory Assembled)
- Insulated 3-Inch Wall Panel System
- One-Piece Insulated FRP Roof Panel
- Forkliftable Insulated Welded Steel Base
- Diamond Plate Steel Floor
- Powder-Coated Exterior Trim

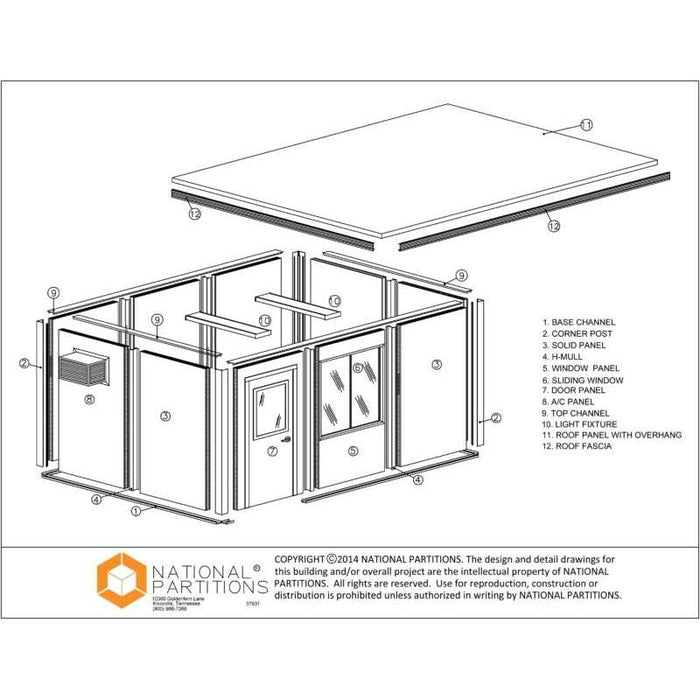

- Approval Drawings for Custom Configuration
- Factory Assembly
- Installation Hardware
Specifications
| Specification | Details |
|---|---|
| Product Type | Forkliftable Exterior Guard Shack |
| Condition | New |
| Building Type | Assembled Exterior Building |
| Interior Dimensions | 5 ft. D x 6 ft. W |
| Exterior Depth | 5.5 ft. (Nominal) |
| Exterior Width | 6.5 ft. (Nominal) |
| Exterior Height | 8.5 ft. (Nominal) |
| Interior Height | 90 in. (Nominal) |
| Color | White |
| Trim Color | White |
| Wall Thickness | 3 Inches |
| Roof Thickness | 4 Inches |
| Wall Insulation | R-13.5 |
| Roof Insulation | R-18 |
| Wall Material | 24-Gauge Galvanized Painted Steel with EPS Insulated Core |
| Roof Material | FRP Panels with EPS Insulated Core |
| Roof Design | One-Piece Leak-Proof Construction |
| Roof Overhang | 1 Inch Nominal |
| Floor System | Insulated Forkliftable Welded Steel Base |
| Floor Surface | Diamond Plate Steel |
| Forklift Access | All Four Sides |
| Fire Rating | Class A |
| Fire Test Standard | ASTM E84 |
| Doors | Optional |
| Windows | Optional |
| Lighting | Optional |
| Electrical Outlets | Optional |
| AC Outlet | Optional |
| Breaker Panel | Optional |
| Assembly Required | No (Ships Fully Assembled) |
