National Partitions Machine Enclosure 12x12x10-high
Talk with an Expert
Need expert advice? Speak with one of our specialists today to find the perfect solution for your security needs. 1-833-673-6879

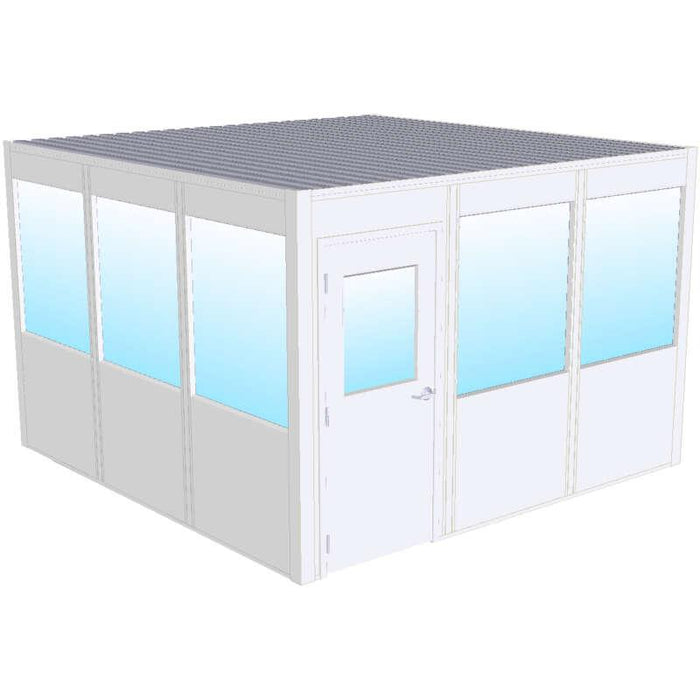

The National Partitions Machine Enclosure 12x12x10-High is a premium modular industrial enclosure engineered to provide superior noise reduction, fire resistance, and equipment protection. Designed with a four-wall configuration, suspended drop ceiling, 20 PSF steel roof, and complete electrical package, this enclosure creates a controlled workspace for manufacturing, machining, and industrial operations. Its durable 3-inch insulated wall panels, heavy-duty steel door, and modular construction allow for easy expansion or reconfiguration, making it a long-term solution for facilities that demand flexibility, performance, and a cleaner working environment.
Key Features
- Four-wall modular machine enclosure with custom layout configuration
- Includes suspended drop ceiling with non-shedding ceiling tiles
- STC 35 sound-deadening walls reduce machine noise
- Class A+ fire-rated construction with 40-minute thermal barrier
- Exclusive DiamondCoat™ 8 mil vinyl wall finish for enhanced durability
- Smooth wall surfaces are easy to clean and resist particle buildup
- Heavy-duty 3-inch insulated wall panels provide superior strength
- 10-foot wall height increases ceiling clearance and plenum space
- Heavy-duty 40" x 84" galvanized steel door with ADA lever lockset
- 20 PSF roof load supports ductwork and filtration systems
- Complete electrical package with LED lighting, outlets, and breaker panel
- Modular design allows future expansion, relocation, and reconfiguration
- Optional windows available for improved visibility
- Approval drawings provided before manufacturing
- Anchors securely to existing concrete floors using base track system
Package Includes
- 1 x National Partitions 12' x 12' x 10' Machine Enclosure
- Modular 3" Insulated Wall Panel System
- Heavy-Duty Steel Door with Tempered Glass
- Suspended Drop Ceiling with Non-Shedding Tiles
- 22-Gauge Steel Roof Deck
- Structural Roof Support System (20 PSF)
- Complete Electrical Package
- 2 x LED Light Fixtures
- 4 x Electrical Outlets
- 1 x Breaker Panel
- Wall Conduit, Junction Boxes, and Cover Plates
- All Connecting Hardware
- Custom Approval Drawings
Specifications
| Specification | Details |
|---|---|
| Product Type | Machine Enclosure |
| Brand | National Partitions |
| Configuration | 4-Wall Interior Enclosure |
| Condition | New |
| Assembly | Unassembled |
| Environmental Rating | ISO 9, Class 500,000 |
| Overall Width | 12 ft. 4-1/2" |
| Overall Depth | 12 ft. 4-1/2" |
| Overall Height | 10 ft. 1-3/4" |

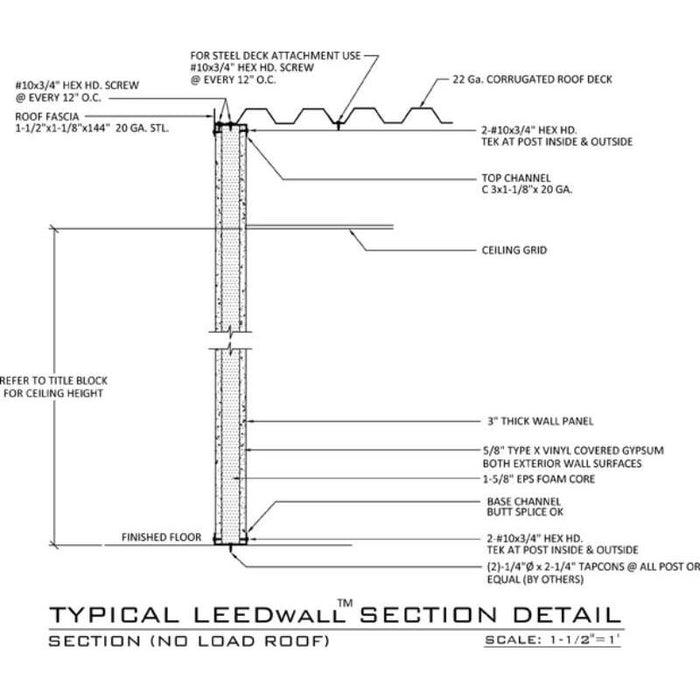

| Wall Thickness | 3" |
| Panel Width | Nominal 4 ft. (2 ft. Panels as Required) |
| Panel Material | Vinyl Covered 5/8" Type X Gypsum Laminated to EPS Insulated Core |
| Wall Finish | White DiamondCoat™ 8 Mil Vinyl |
| Optional Colors | Gray or Tan |
| Frame Color | White (Optional Gray or Tan) |
| Insulation Rating | R-8 |
| Sound Rating | STC 35 |
| Fire Rating | Class A+ Non-Combustible, 40-Minute Thermal Barrier |
| Fire Standard | ASTM E84 |
| Door Size | 40" x 84" |
| Door Material | Heavy-Duty Galvanized Steel with 1/4" Tempered Glass |
| Door Hardware | ADA Lever Lockset and Heavy-Duty Hinges |
| Windows | Optional |
| Roof Construction | 22-Gauge Corrugated Steel Deck |
| Ceiling Type | 2' x 4' Drop Ceiling with Non-Shedding Tiles |
| Roof Load Capacity | 20 PSF |
| LED Lights | 2 |
| Electrical Outlets | 4 |
| Breaker Panel | 1 |
| Mounting | Base Track Anchored to Existing Concrete Floor |
| Hardware | Complete Connecting Hardware Included |
