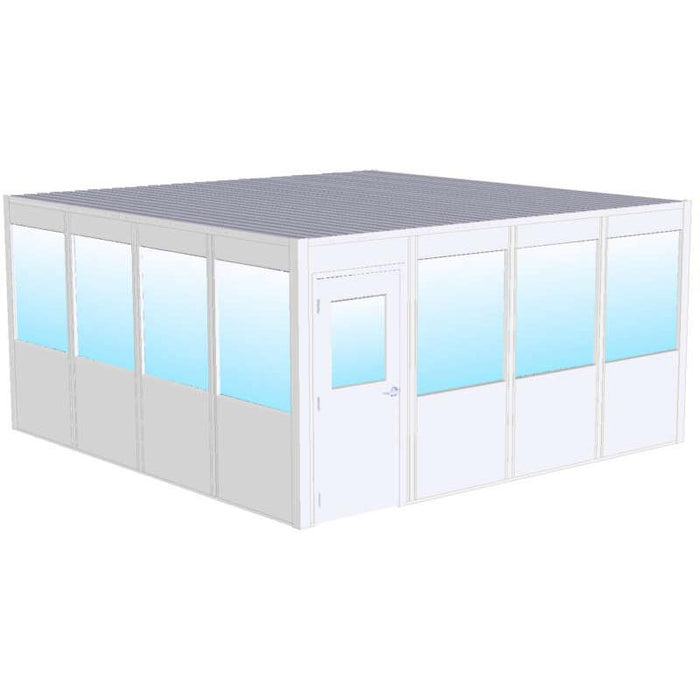

National Partitions Machine Enclosure 16x16x10-high
Talk with an Expert
Need expert advice? Speak with one of our specialists today to find the perfect solution for your security needs. 1-833-673-6879
The National Partitions 16x16x10 High Machine Enclosure is a premium modular interior enclosure designed for industrial, manufacturing, and controlled environment applications. This 4-wall enclosure system includes a non-shedding drop ceiling, 20 PSF load-rated steel roof, standard electrical package, and heavy-duty steel door for dependable performance and protection. Built with durable 3-inch hardwall panels, the enclosure delivers STC 35 sound reduction, Class A+ 40-minute thermal barrier protection, and an exclusive DiamondCoat™ 8 mil vinyl wall finish that creates a smooth, easy-to-clean surface. The interchangeable modular panel design allows simple reconfiguration, expansion, relocation, and customization without affecting surrounding components. Designed for ISO 9 Class 500,000 environments, this machine enclosure includes LED lighting, outlets, breaker panel, structural roof support, and complete hardware for creating a reliable and adaptable workspace.
Key Features
- 4-wall modular machine enclosure configuration
- Designed for ISO 9, Class 500,000 controlled environments
- Strong 3-inch thick hardwall panels for long-lasting performance
- STC 35 sound deadening walls reduce equipment noise
- Class A+ 40-minute non-combustible thermal barrier protection
- DiamondCoat™ 8 mil durable white vinyl wall finish
- Smooth wall surfaces simplify cleaning and reduce particle buildup
- 10-foot high walls provide increased ceiling height and plenum space
- Heavy-duty 40" x 84" steel door with ADA lever lockset
- Gasketed door jamb improves sound control
- 20 PSF roof design supports ductwork and filtration systems
- Modular interchangeable panels allow flexible layouts
- Custom door, window, outlet, and AC configurations available
- Non-shedding 2x4 drop ceiling system included
- Complete electrical package with LED lights and outlets
- Designed for expansion, relocation, and future modifications
Package Includes
- 1 x National Partitions 16x16x10 High Machine Enclosure System
- 4-Wall Modular Hardwall Panel Configuration
- 3" Thick Insulated Wall Panels
- Non-Shedding Drop Ceiling with Grid System
- 20 PSF Steel Roof Deck Assembly
- Heavy-Duty Steel Door with Tempered Glass
- Standard Electrical Package
- LED Light Fixtures
- Electrical Outlets
- Breaker Panel
- Wall Conduit, Junction Boxes, and Cover Plates
- Complete Connecting Hardware
- Custom Approval Drawings
Specifications
| Specification | Details |
|---|---|
| Product Type | Machine Enclosure |
| Brand | National Partitions |
| Condition | New |
| Configuration | 4-Wall Interior Use Enclosure |
| Environmental Rating | ISO 9, Class 500,000 |
| Assembly | Unassembled |
| Overall Width | 16 ft. 4-1/2" |
| Overall Depth | 16 ft. 4-1/2" |
| Overall Height | 10 ft. 1-3/4" |
| Wall Thickness | 3" |
| Panel Width | Nominal 4 ft. (2 ft. Options Available) |

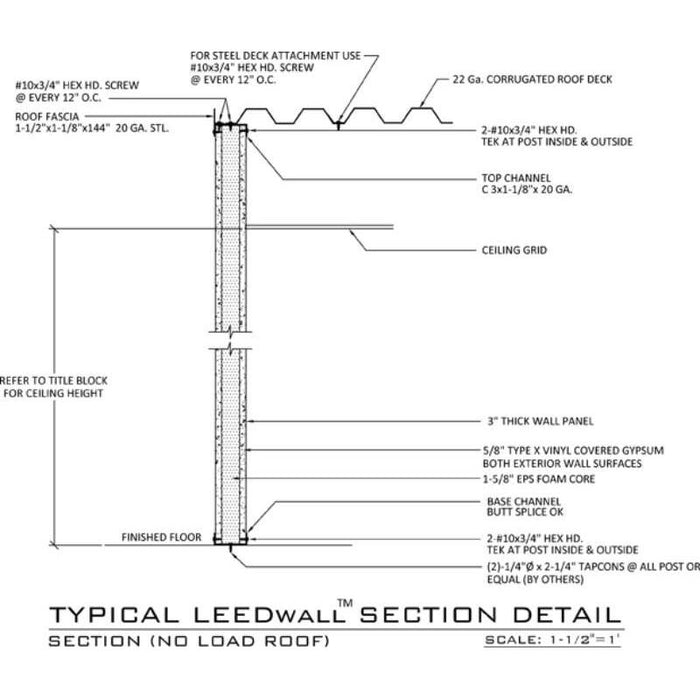

| Panel Material | Vinyl Covered 5/8" Type X Gypsum on Both Sides with EPS Thermal Insulated Core |
| Wall Finish | DiamondCoat™ White Vinyl |
| Finish Thickness | 8 Mil |
| Optional Colors | Gray or Tan |
| Frame Color | White (Optional Gray or Tan) |
| Insulation Rating | R-8 |
| Sound Transmission Coefficient | STC 35 |
| Fire Rating | Class A+ Non-Combustible 40-Minute Thermal Barrier |
| Fire Test Standard | ASTM E84 |
| Door Size | 40" x 84" Heavy-Duty Steel Door |
| Door Construction | 20 Gauge Door with 16 Gauge Jamb |
| Door Features | Tempered Glass, ADA Lever Lockset, Heavy-Duty Hinges |
| Windows | Optional |
| Roof Material | 22 Gauge Corrugated Galvanized or Prime Coated Steel Deck |
| Ceiling Type | 2x4 Non-Shedding Tile Drop Ceiling with White Grid |
| Roof Load Capacity | 20 PSF Maintenance Load |
| Roof Support | Steel I-Beams Installed at 8' O.C. |
| LED Lights | 4 |
| Outlets | 6 |
| Breaker Panel | 1 |
| Hardware | Complete Hardware Package Included |
